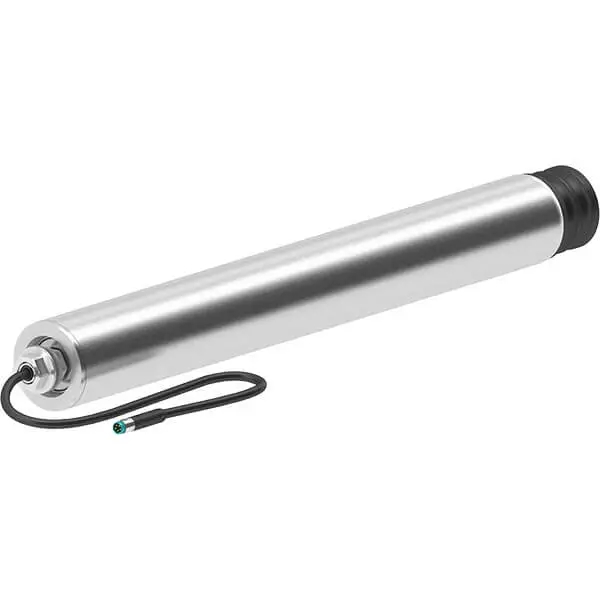

Lenze o450 analog motor driven roller
Lenze o450 analog motor driven roller
The o450 analog motor driven roller with 24 V or 48 V connection is a real pacemaker for your application and accelerates up to a rated speed of 1.5 m/s with a rated torque of 1.35 Nm. The innovative permanent magnet motor represents a new type of drive concept. It can be used to successfully implement roller conveyors, accumulating roller conveyors, and dynamic sorters.
Highlights
The very high efficiency minimizes energy costs
External rotor - based on the Vernier principle - ensures a low-noise transport of loads
Brushless permanent magnet motor with high performance ensures significantly faster goods transportation
Few variants and tube lengths from 345 ... 1500 mm allow direct integration into the conveyor line
They can be integrated into the system using standard plug & play control units
Technical data
| Rated torque | 1.35 Nm |
|---|---|
| Max. torque | 5.0 Nm |
| Rated speed | 1.5 m/s |
| Max. speed | 3.0 m/s |
| Tube diameter | 50 mm |
| Tube installation lengths | 345 ... 1500 mm |
The motor driven roller from Lenze
Take on a new leading role in your conveyor technology
Intralogistics solutions in warehouses, airports or distribution centers benefit from the endless opportunities that our new motor driven roller offers for your conveyor design.
The active gearless MDR is suitable for a wide range of applications in your conveyor systems.
Up to 2x as powerful as other MDRs thanks to the innovative motor design
30 % energy saving compared to conventional MDR, comparable to efficiency classes IE7 to IE9
Quiet operation with design based on Vernier-principal
Minimal variance: One covering all speed and torques
Voltage flexibility: Single variant can run on 24 and 48 VDC
