PARAMAX® SFC Series Reducer for Cooling Towers
PARAMAX® SFC Series Reducer for Cooling Towers
Right Angle Shaft Reducer for Cooling Tower Fans
Overview
Specifically optimized for running cooling tower fans.
No protrusions on the mounting surface, which makes transporting and mounting easy.
Engineered with heat dissipation in mind, to maintain optimal temperature for the reducer in the vicinity of the cooling tower fan, where airflow is minimal.
Uses a 25° gear pressure angle for high dedendum strength. Reducer with high load capacity, capable of withstanding strong impact loads.
Capable of a year of continuous operation.

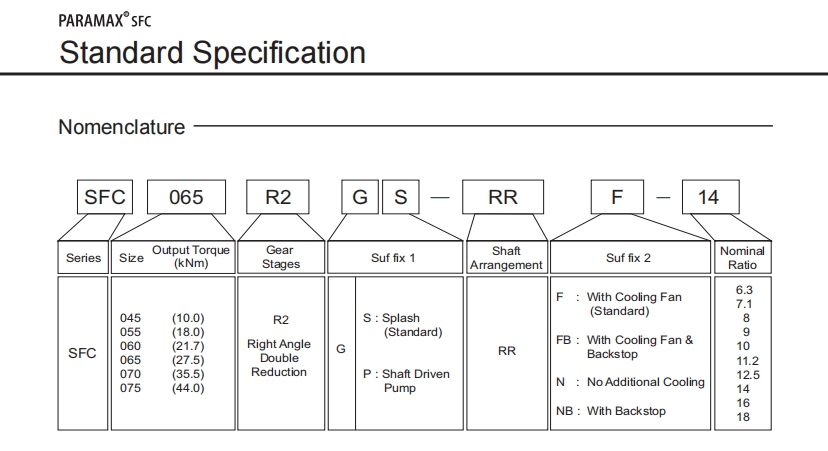

Technical Info
Technical Inf
Output Shaft | Solid shaft |
Output Shaft Direction(s) | Vertical upward, Vertical downward |
Mounting Style | Case mount |
Frame Size | 7 sizes |
Reduction Ratio | 6.3:1 - 22.4:1 |
Rated Torque | 10,000 - 44,000 N⋅m |
Aftersales Service & Support
Our dedicated aftersales team provides technical support, troubleshooting assistance, and repairs or replacements for any unit. With years of expertise and experience, be confident in your purchase and trust that we are always here to support you.
Replace/Upgrade Your Obsolete Gearbox
Do you have a gearbox that is obsolete? A gearbox that requires an upgrade in capacity? An existing gearbox that is not supported in your country? Fret not! Our drop-in solution is specially designed to fit onto the existing dimension of your gear reducer.
