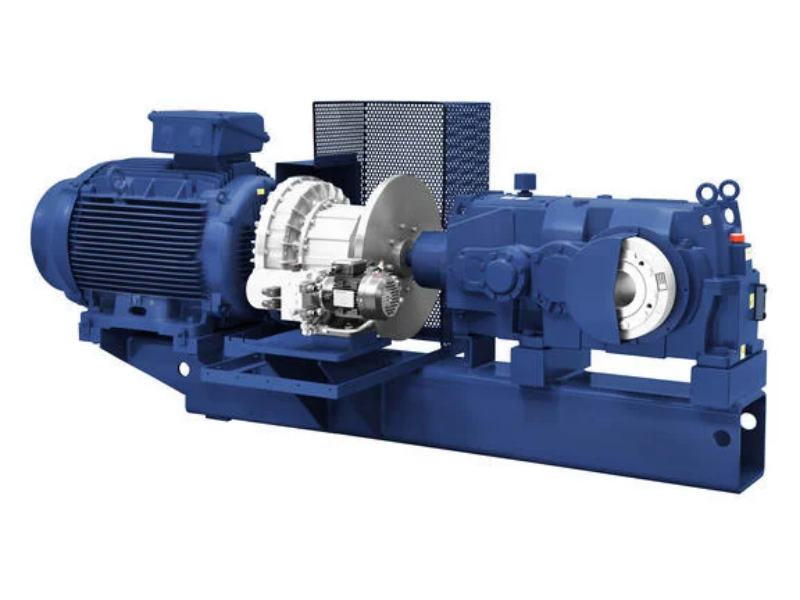

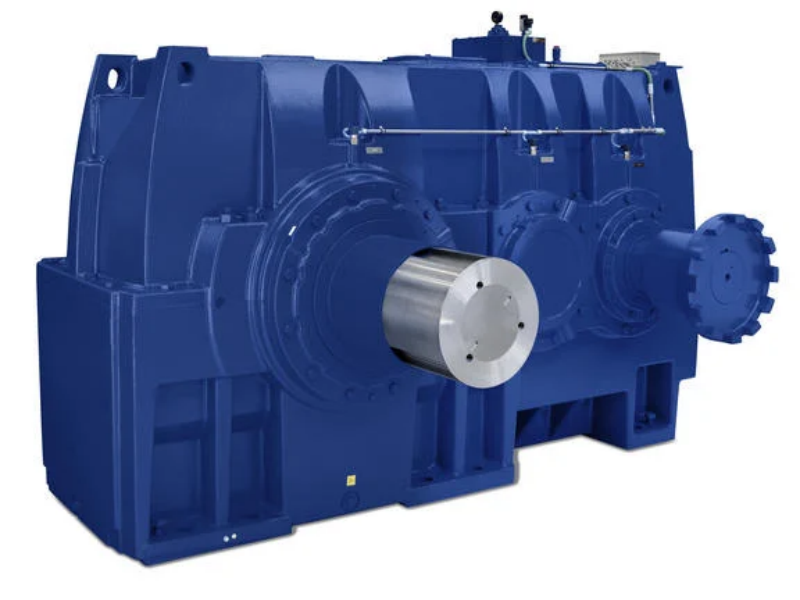

Sumitomo Hansen P4 Multistage - Horizontal

Designed specfically for all horizontal applications

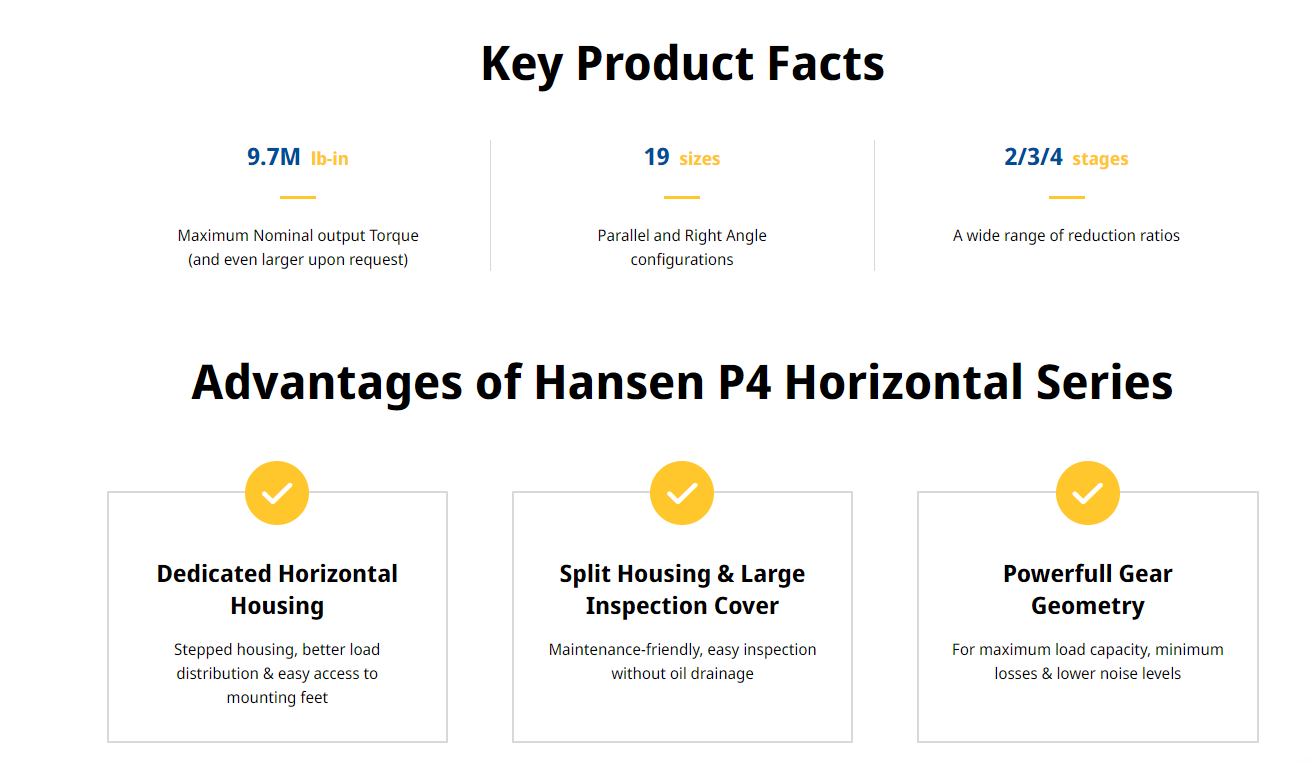

Overview：

· Parallel and right Angle - 2/3/4 stage gearboxes with a wide range of reduction ratios.

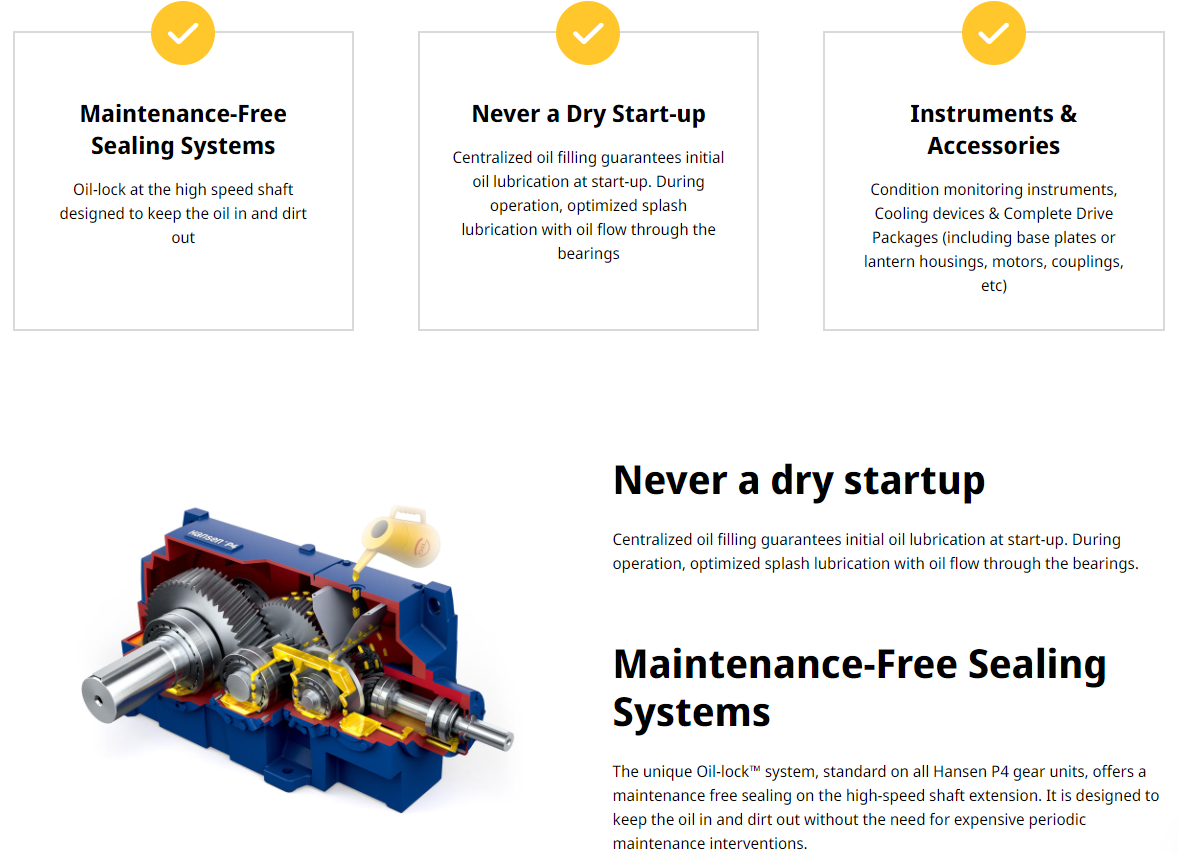

· Service friendly with split housing, inspection cover, and maintenance-free sealing system.

· Reliable product series allowing flexible customization and options upon request.

· Powerful Hansen P4 gear geometry for low noise and vibration levels.

Technical Info：

Number of Sizes	19

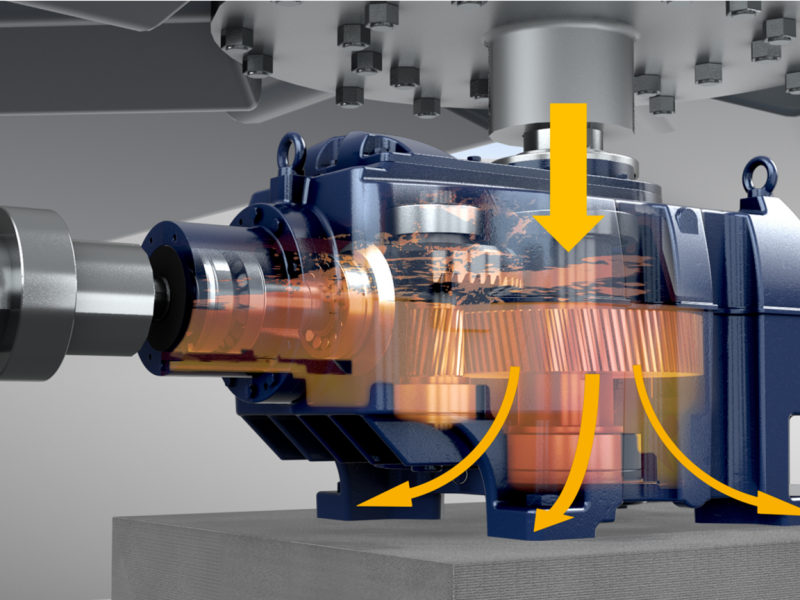

Housing type	Specific housings for horizontal applications
Gears	Helical and Bevel helical (in accordance with AGMA)
Stages	2, 3 or 4 stage
Reduction Ratios	6.3:1 to 630:1 and special ratio's upon request
Nominal output torque	Up to 9.7M lb-in (1100 kNm)
Input speed	up to 1800 rpm
Shaft type	Solid or hollow low-speed shaft
Lubrication	Splash lubrication or forced
